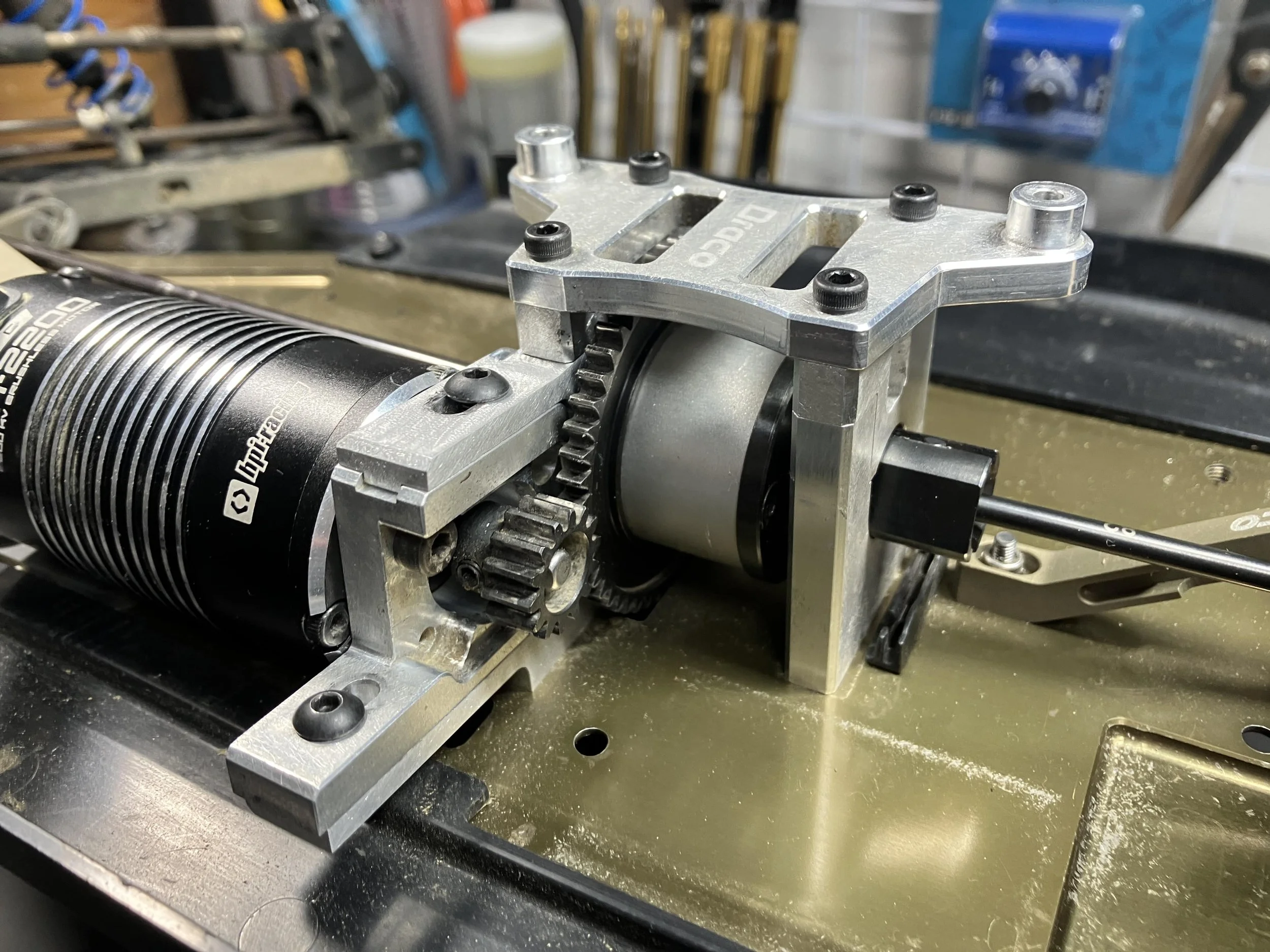

The Draco Motor mount and integrated centre diff mount is made of Aluminum 7075-T6 and then hard anodized. It is designed to allow easy access to the centre diff and also allows larger motors up to 42mm in diameter to be used. The Centre Diff mounts are a two-piece design and can be split by removing 4 screws. This enables the user to remove the centre diff very easily and very quickly during maintenance without removing the entire mount from the vehicle.

The Motor mount itself has been modified to open up more options for Pinion gears. Using the stock 50T/48T spur gears you can now use pinions from 13T to 22T for those bashers who enjoy making speed runs.

WARNING: Draco Motor Mount is for the Flux Platform ONLY

Features:

• Made from 7075-T6 Aluminum

• Hard Anodized Clear for durability and wear resistance

• Two-Piece design for easy and quick centre diff access

• Optional Draco Truggy Tower Braces compatible (Truggy Flux Only)

• Compatible with up to 42mm diameter 1/8th scale motors

• Sliding motor plate for proportional gear mesh set up

• Capable of using 13T-20T Pinions with a 48T or 50T Spur gear

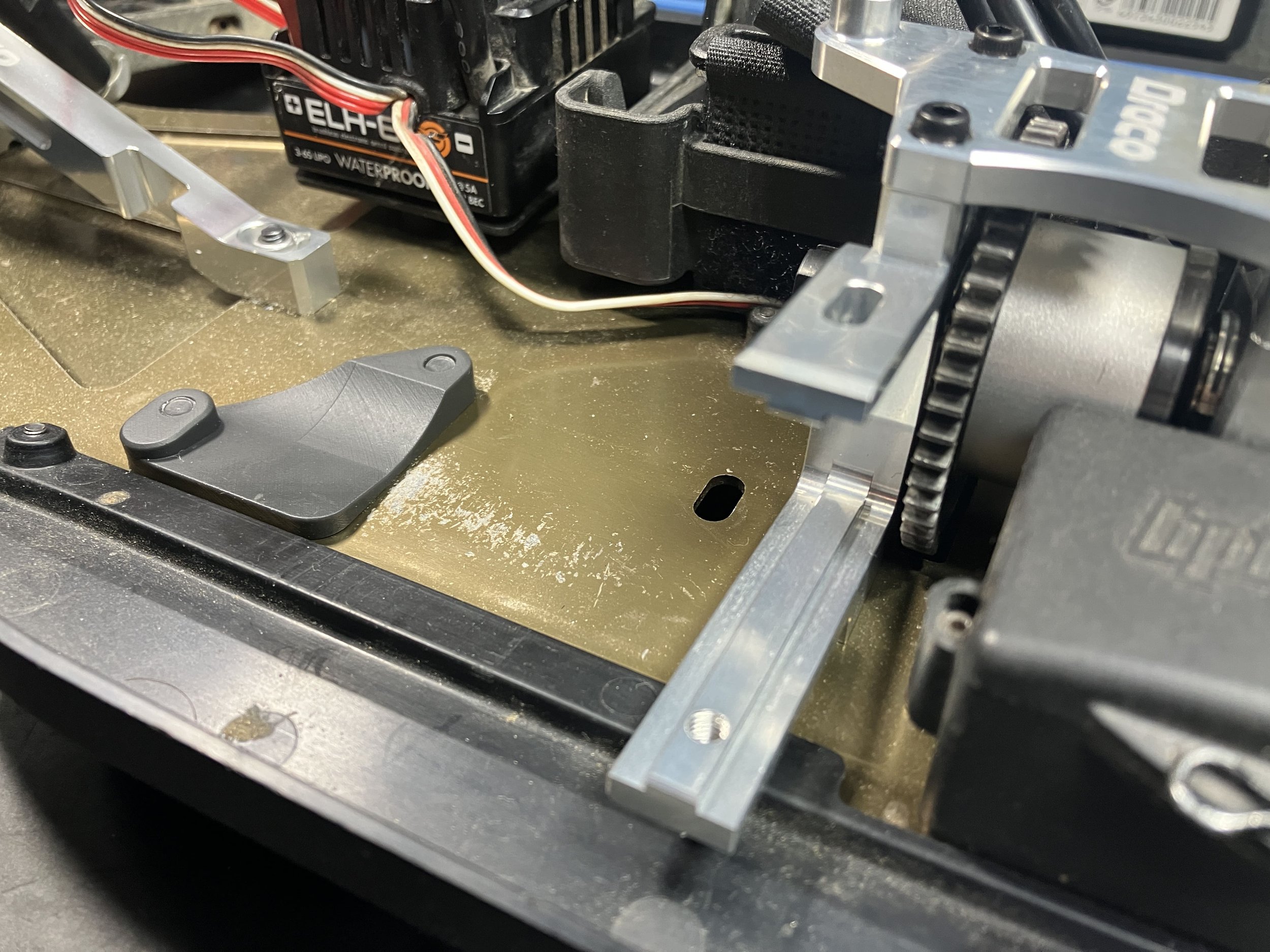

• Included Motor Pad for adding support at the rear of the motor during jumps and bashing

Included Parts:

• DRA-411 Draco Rear Lower Plate (1)

• DRA-412 Draco Motor Plate (1)

• DRA-413 Draco Rear Upper Plate (1)

• DRA-414 Draco Front Lower Plate (1)

• DRA-415 Draco Front Upper Plate (1)

• DRA-416 Draco Centre Top Plate (1)

• DRA-417 Draco Motor Pad (1)

• DRA-0412FS M4x12mm Flathead Screw (4)

• DRA-0410BS M4x10mm Button Screw (2)

• DRA-0412CS M4x12mm Cap Screw (2)

• DRA-0330CS M3x30mm Cap Screw (2)

• DRA-0316CS M3x16mm Cap Screw (2)

• Exploded View

Vehicle Compatibility:

-HPI Vorza Flux Buggy

-HPI Vorza Flux Truggy

-HPI Vorza S Flux Buggy

-HPI Vorza S Flux Truggy

-HPI Vorza Flux HP (2009)

Motor Compatibility:

-All 4275 Motors for 1/8th scale vehicles and below (Motor mount is limited to 42mm diameter motors only so any 1/6th scale motors including the 4985 motors from Hobbywing are not compatible)
