Draco Vorza Truggy Shock Towers
In Stock
The Draco Front and Rear Shock Towers are made of 7075-T6 Aluminum and hard anodized. The Towers are 6mm thick with additional shock mounting and upper arms positions. The thicker towers add rigidity and durability to the truggy as well as a centre brace to reduce the chassis flex.
Features:
Made of 7075-T6 Aluminum
Hard Anodized for wear resistance and strength
6mm Thick Aluminum
10 Upper Mounting locations for Shocks
6 Upper Arm mounting Locations
Optional Centre Tower Brace (Available Separately)
Both Front and Rear Towers fit stock bumper, body mounts, rear wing mounts and diff housing
Additional location for body mounts on both towers
Included Parts:
DRA-405F Draco Front Truggy Shock Tower (1)
DRA-405R Draco Rear Truggy Shock Tower (1)
DRA-403 Draco M4 Shock Standoff (4)
DRA-0470FLN M4 Flanged Lock Nut (8)
DRA-0322CS M3x22mm Cap Screw (4)
Exploded View
Vehicle Compatibility:
-HPI Vorza Flux Truggy
-HPI Vorza S Flux Truggy
-HPI Vorza Nitro Truggy
-Hot Bodies D8T
(The Draco Truggy Tower Braces Set is not compatible with Nitro platforms)
Overview:
-
DRA-404 Draco Front and Rear Truggy Shock Towers
$59.00US
-
Draco Front Truggy Shock Tower
DRA-405F Draco Front Truggy Shock Tower
This front shock tower has 10 upper holes which is an increase of 7 holes over the stock tower. The upper arm mounting positions also sees an increase of 3 with a total of 6 holes compared to stock. The Front shock tower now has a mount for a centre brace that extends from Front tower to Rear tower.
-
Draco Rear Truggy Shock Tower
DRA-405R Draco Rear Truggy Shock Tower
The rear tower has an increase in mounting holes at the top and lower positions for more options for your Upper shock location and upper arm locations. The rear tower also has a new centre brace and mount ensuring minimal flex of the chassis.
-

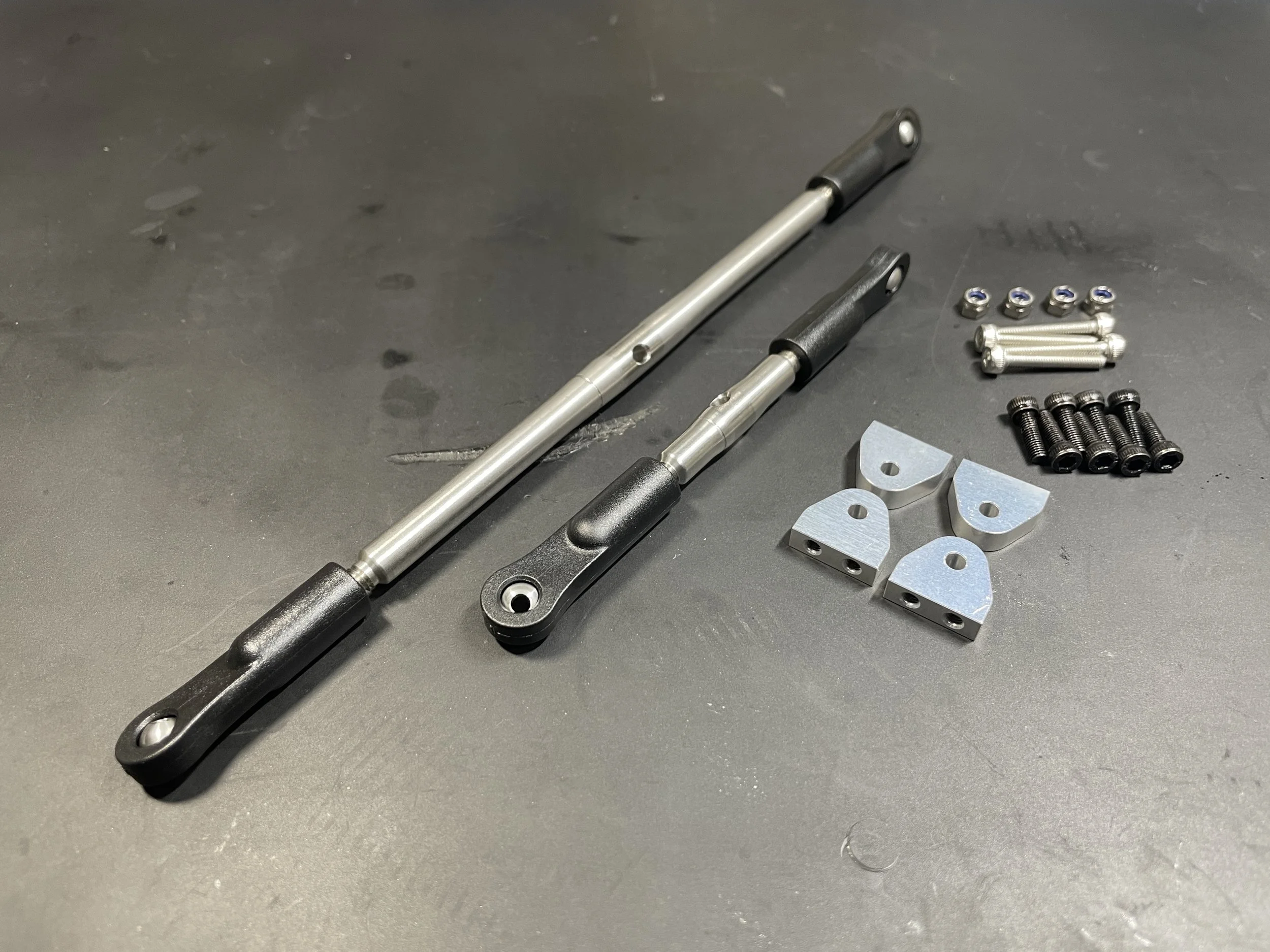

Draco Truggy Tower Braces Set
DRA-418 Draco Truggy Tower Braces Set
$42.00US
This optional set is available separately.
The centre tower brace consists of two separate braces which connect both front and rear towers to the centre diff top plate. In the front the M5x55mm turnbuckle and in the rear the M5x155mm turnbuckle eliminate the flex from the chassis. Both turnbuckles are made of 304 stainless steel and using an adjustable wrench you can adjust the stiffness by tightening each turnbuckle individually.
Please note: The Draco Truggy Tower Braces Set is not compatible with Nitro Models.
