Draco Savage XL Electric Conversion Kit

Available Now!

2 Sets Remaining

Product Overview

The Draco Savage Electric Conversion kit is available for customers who would like to convert an existing HPI Nitro Savage Platform to an electric (Flux) platform. Although the Kit includes MOST of what you need to complete the conversion there are still some parts the customer will need to purchase separately. Depending on whether you are converting a Savage X or a Savage XL and the older generation Savage .21/.25 and Savage Octane platforms, the list of parts will differ. The Draco Centre Diff includes an ESC mount which is mounted above the Centre Diff or for customers wanting to mount their ESC at the rear, the Draco Rear ESC Mount is also available. Please choose the configuration you`d like.

Below are 2 options that I have put together to cover customer requirements. Some parts are also available to order separately in The Draco Store.

Parts Included:

  • DRA-210 Draco Savage XL Flux TVPs (1 Pair)

  • DRA-200 Draco Centre Diff Set 2024 (See what is included here)

  • ….depending on Bundle additional parts may differ. For more information, Please see below.

Optional Parts Available:

  • DRA-209 Draco Rear ESC Mount

  • DRA-215 Draco Carbon Fibre Servo Plate and Radio Box

Parts Needed:

  • Radio Box (HPI85236 or DRA-215 Draco Servo Plate and Radio Box)

  • DRA-209 Draco ESC Rear Mount (If a rear mounted ESC is preferred)

  • Battery Boxes

  • ESC

  • Motor

  • 11T-22T Mod 1 Pinion

  • Centre Diff Case (HPI86827 Alloy Diff Case Set or Draco Diff Case DRA-100)

  • Front and Rear Complete HPI Savage Bulkhead Assemblies

Draco Savage XL Electric Conversion Kit

Draco ECK 2.jpg

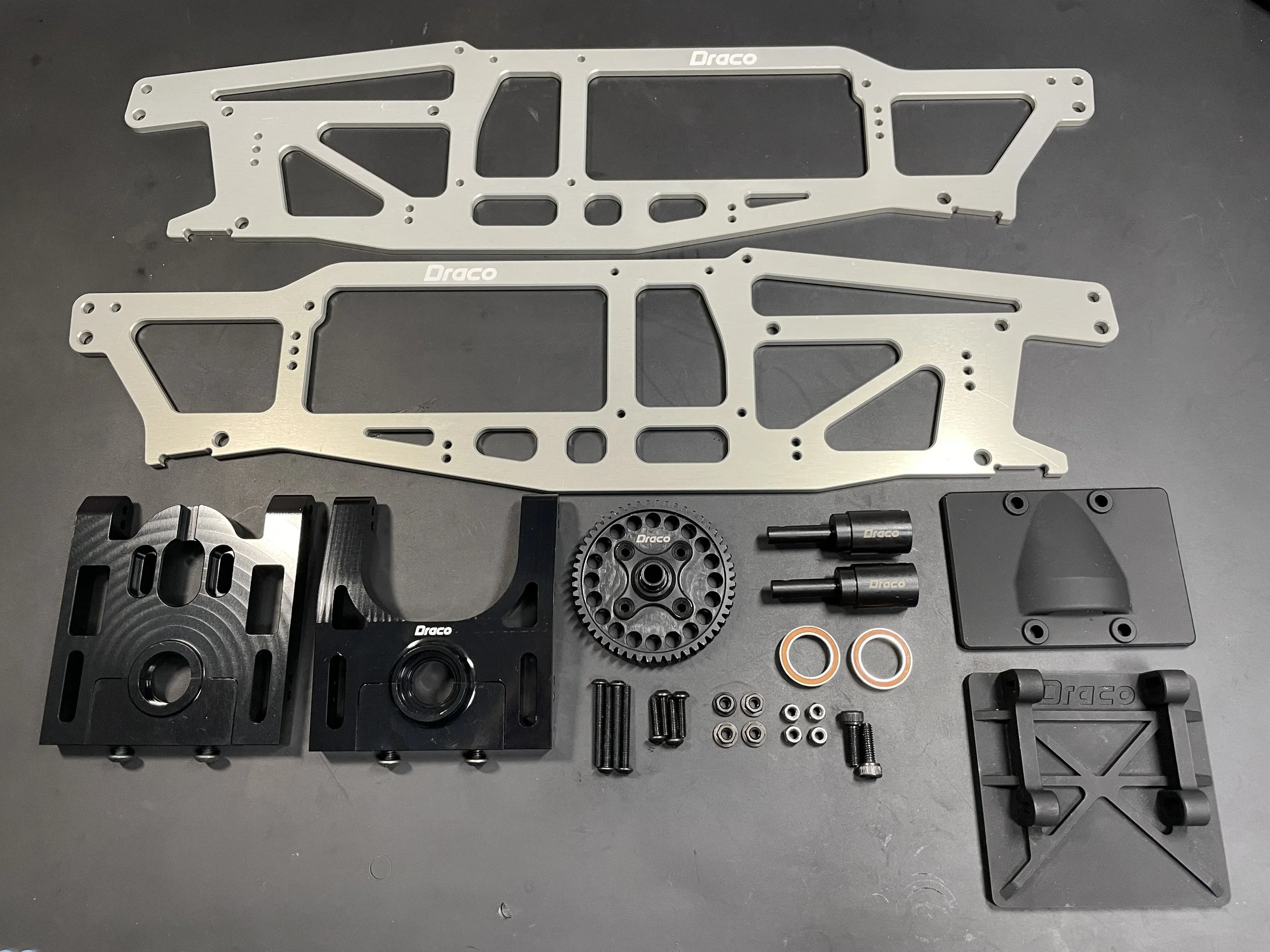

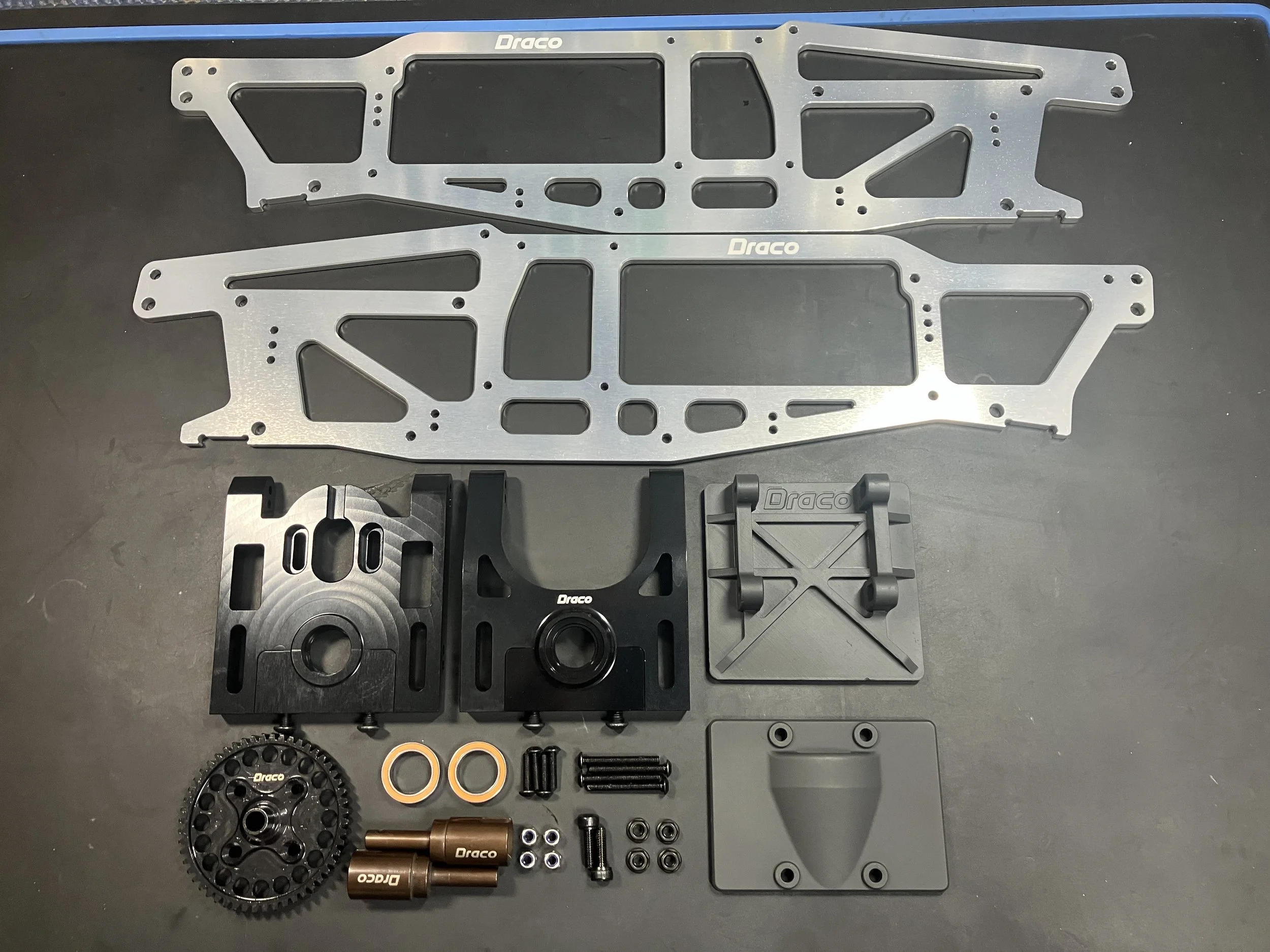

The Draco Savage XL Electric Conversion Kit (Draco ECK) shown with your choice of Radio Boxes, the Draco Servo Plate and Radio Box Set or the stock HPI Radio Box (HPI85236).

The Draco Savage XL Electric Conversion Kit (Draco ECK) shown with your choice of Radio Boxes, the Draco Servo Plate and Radio Box Set or the stock HPI Radio Box (HPI85236).

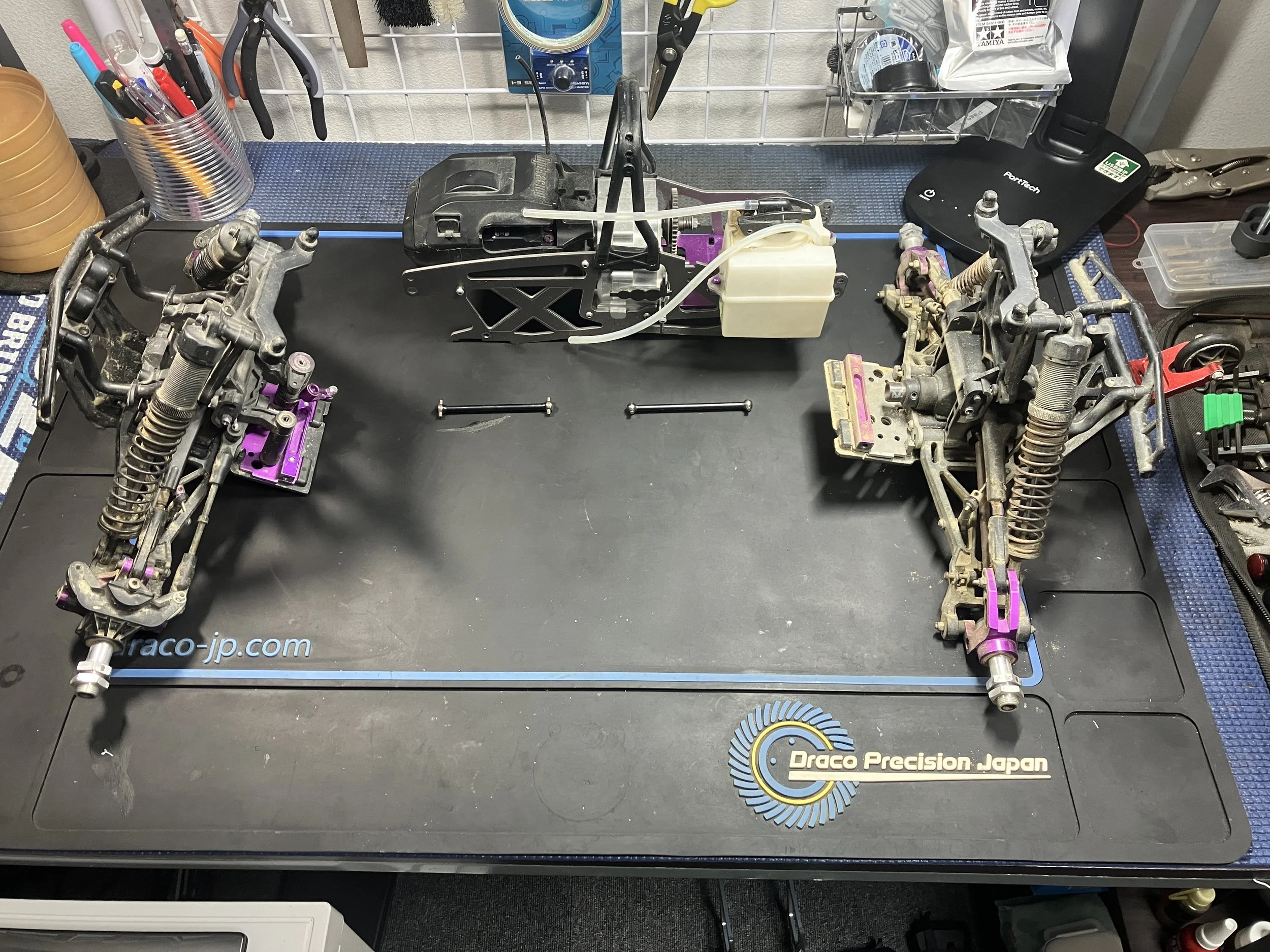

HPI Savage X split into three sections; front clip, rear clip and centre section. You can see the front 78mm dogbone and rear 84mm dogbone. If you are converting this platform to electric you will need the HPI86054 8x142mm rear dogbone as the XL chas

HPI Savage X split into three sections; front clip, rear clip and centre section. You can see the front 78mm dogbone and rear 84mm dogbone. If you are converting this platform to electric you will need the HPI86054 8x142mm rear dogbone as the XL chassis is longer. It is available in The Draco Store

The HPI Savage X centre section and complete front and rear clips shown with the stock Savage XL 8x142mm rear dogbone (long) and the stock Savage X 84mm rear dogbone (short). You will need the 142mm long dogbone to use the Draco ECK. Please choose fr

The HPI Savage X centre section and complete front and rear clips shown with the stock Savage XL 8x142mm rear dogbone (long) and the stock Savage X 84mm rear dogbone (short). You will need the 142mm long dogbone to use the Draco ECK. Please choose from The Draco Store.

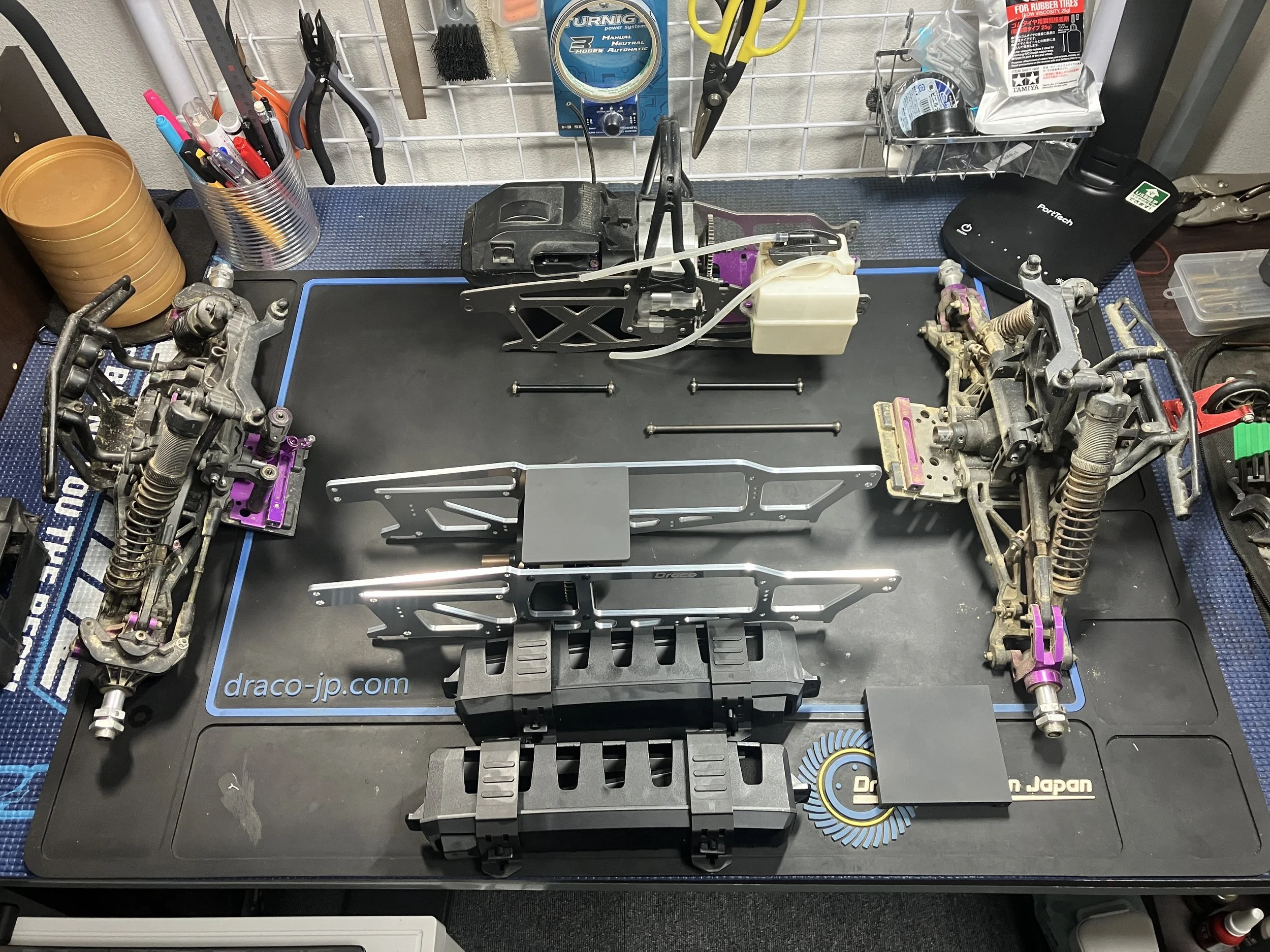

The Draco Savage ECK replaces the centre Savage X section with the Draco Centre Diff Set and Savage XL Flux TVPs. You can also add the battery boxes and/or Rear ESC Mount depending on your needs.

The Draco Savage ECK replaces the centre Savage X section with the Draco Centre Diff Set and Savage XL Flux TVPs. You can also add the battery boxes and/or Rear ESC Mount depending on your needs.

The complete HPI Savage with the Draco Electric Conversion Kit. You can choose the radio box and provide your own electronics. Choose the best bundle for you in The Draco Store. More details below!

The complete HPI Savage with the Draco Electric Conversion Kit. You can choose the radio box and provide your own electronics. Choose the best bundle for you in The Draco Store. More details below!

Draco Savage XL Electric Conversion Kit Options

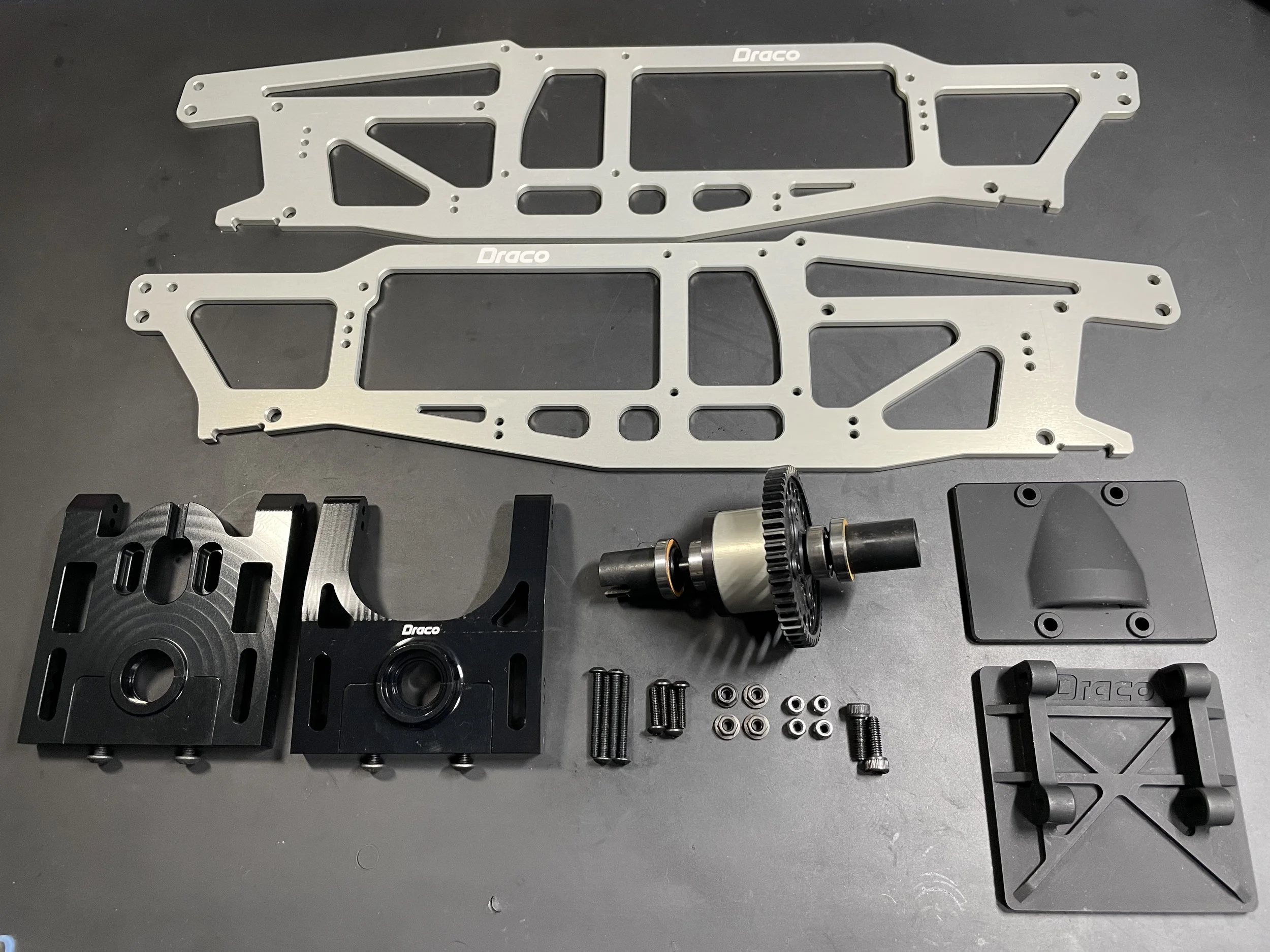

  • DRA-211 Draco Savage XL Flux Electric Conversion Kit (Bundle 1)

    Parts included in Bundle 1

    -Draco Savage XL Flux TVPs (2)

    -Draco Centre Diff Set 2024 (1)

    -Pre-Assembled Draco Centre Differential

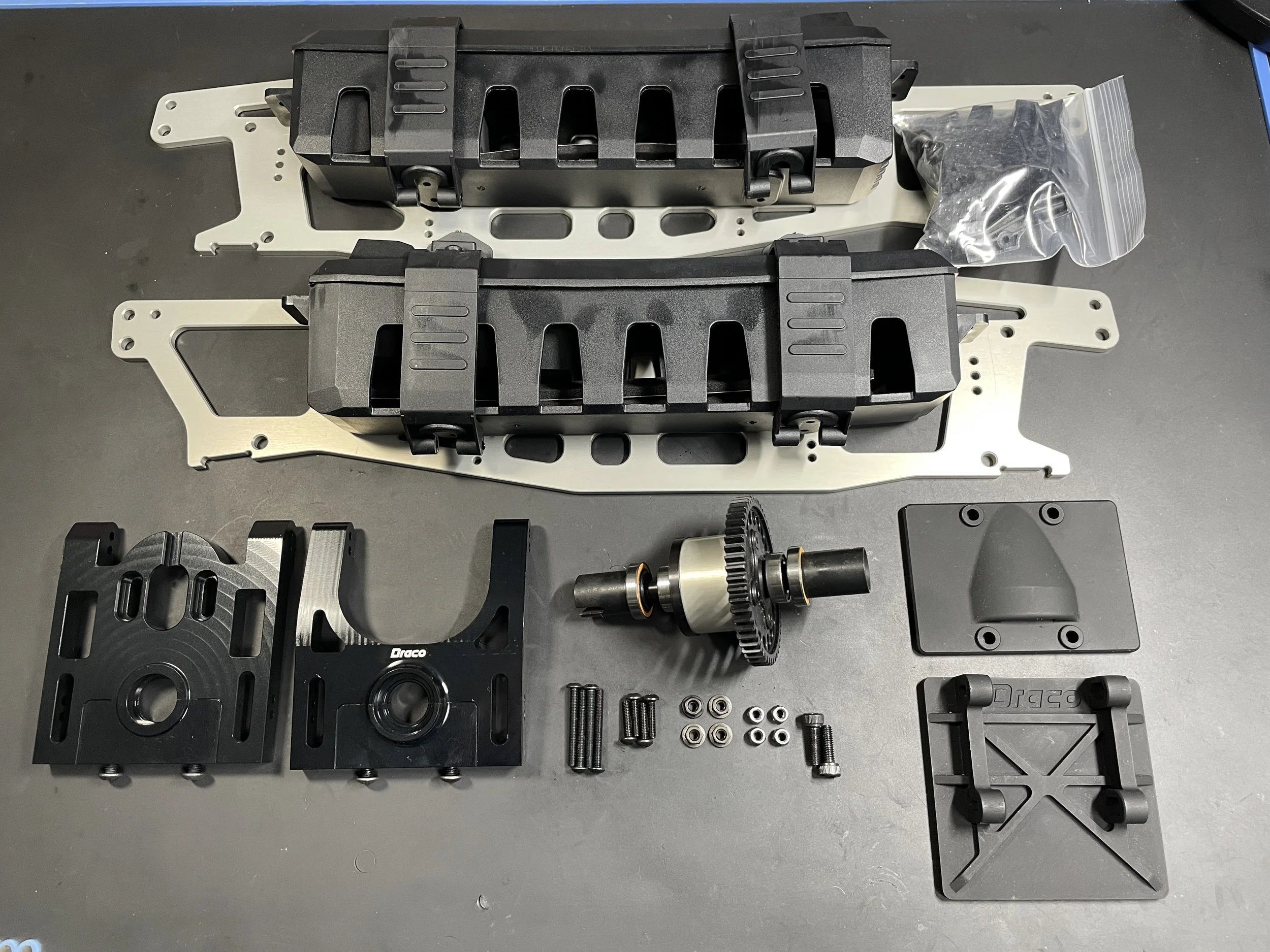

  • DRA-212 Draco Savage XL Flux Electric Conversion Kit (Bundle 2)

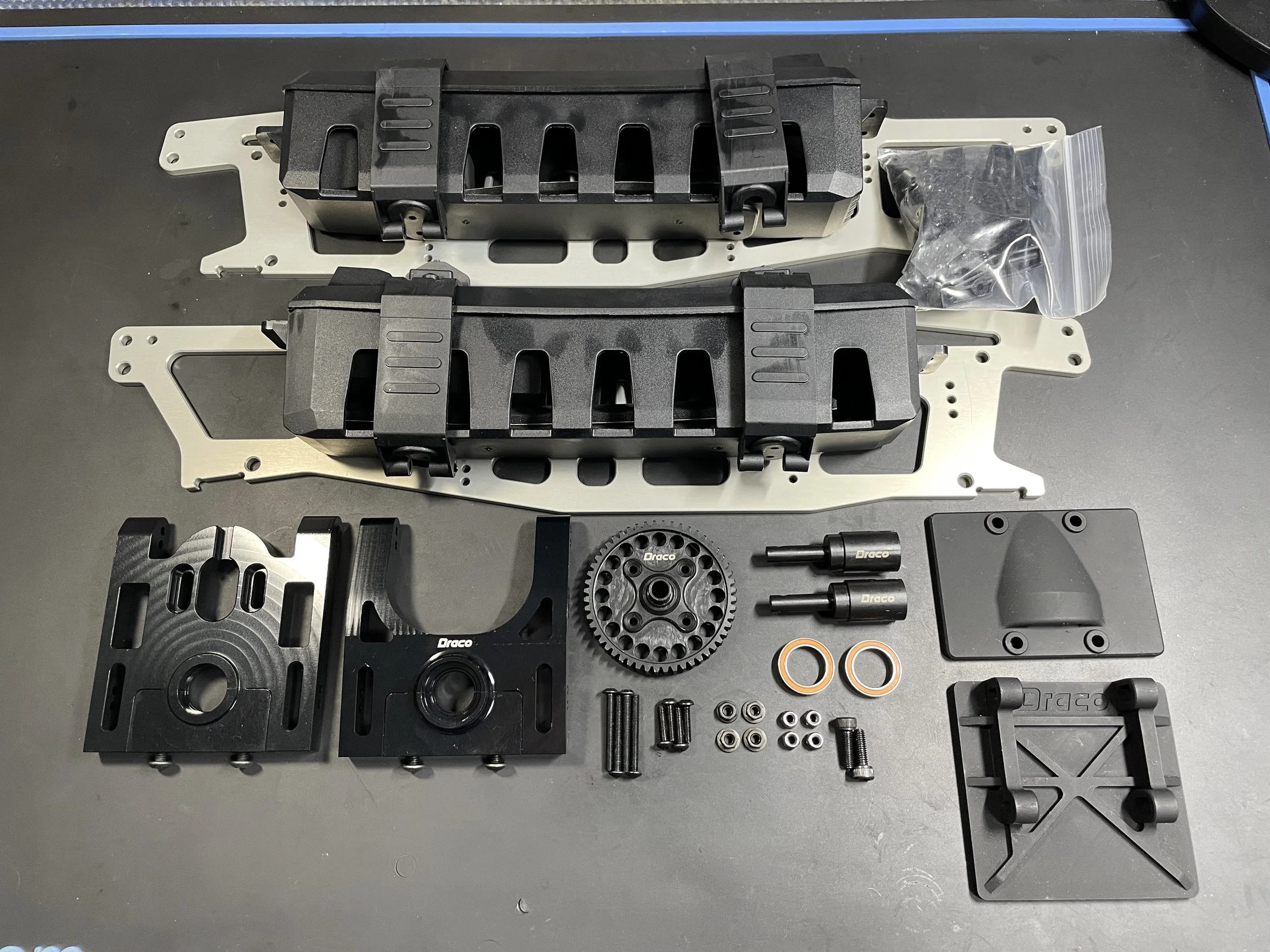

    Parts included in Bundle 2

    -Draco Savage XL Flux TVPs (2)

    -Draco Centre Diff Set 2024 (1)

    -Battery Boxes (2)

    -Pre-Assembled Draco Centre Differential

  • Pre-Assembled Draco Centre Differential

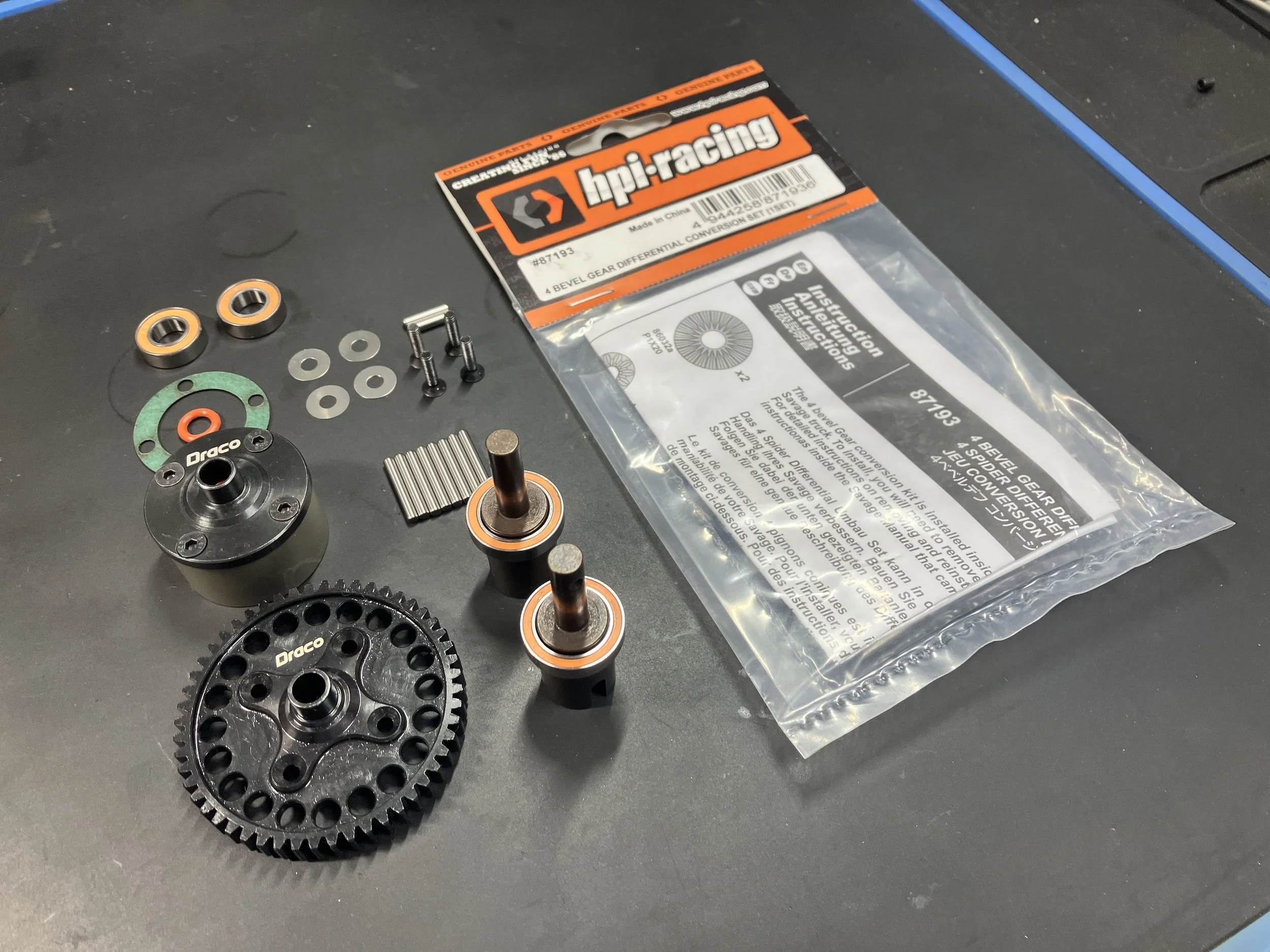

    Parts included in Pre-Assembled Centre Differential

    -Draco Diff Case (1)

    -Draco 52T Spur Gear (1) (included with the Draco Centre Diff Set)

    -Draco Outdrives (2) (included with the Draco Centre Diff Set)

    -87193 HPI 4 Bevel Gear Conversion Set

    -8×16×5mm Bearings (2)

    -13×19×4mm Bearings (2) (for Outdrives)

    -2.5×12mm Pins (2)

    -2.5×18mm Pins (8) (for Draco Diff)

    -M3×12mm Flathead Screws (4)

    -M3×10mm Flathead Screws (4)

    -4×10×0.15mm Shims (4) (for 10T Spider Gears)

    -P6 O-Rings (2)

    -Diff Gasket (2)

    -Your choice of 1,000,000cst or 500,000cst Silicone Oil

A closer look

Draco Savage XL Electric Conversion Kit

  • Draco Centre Diff Set

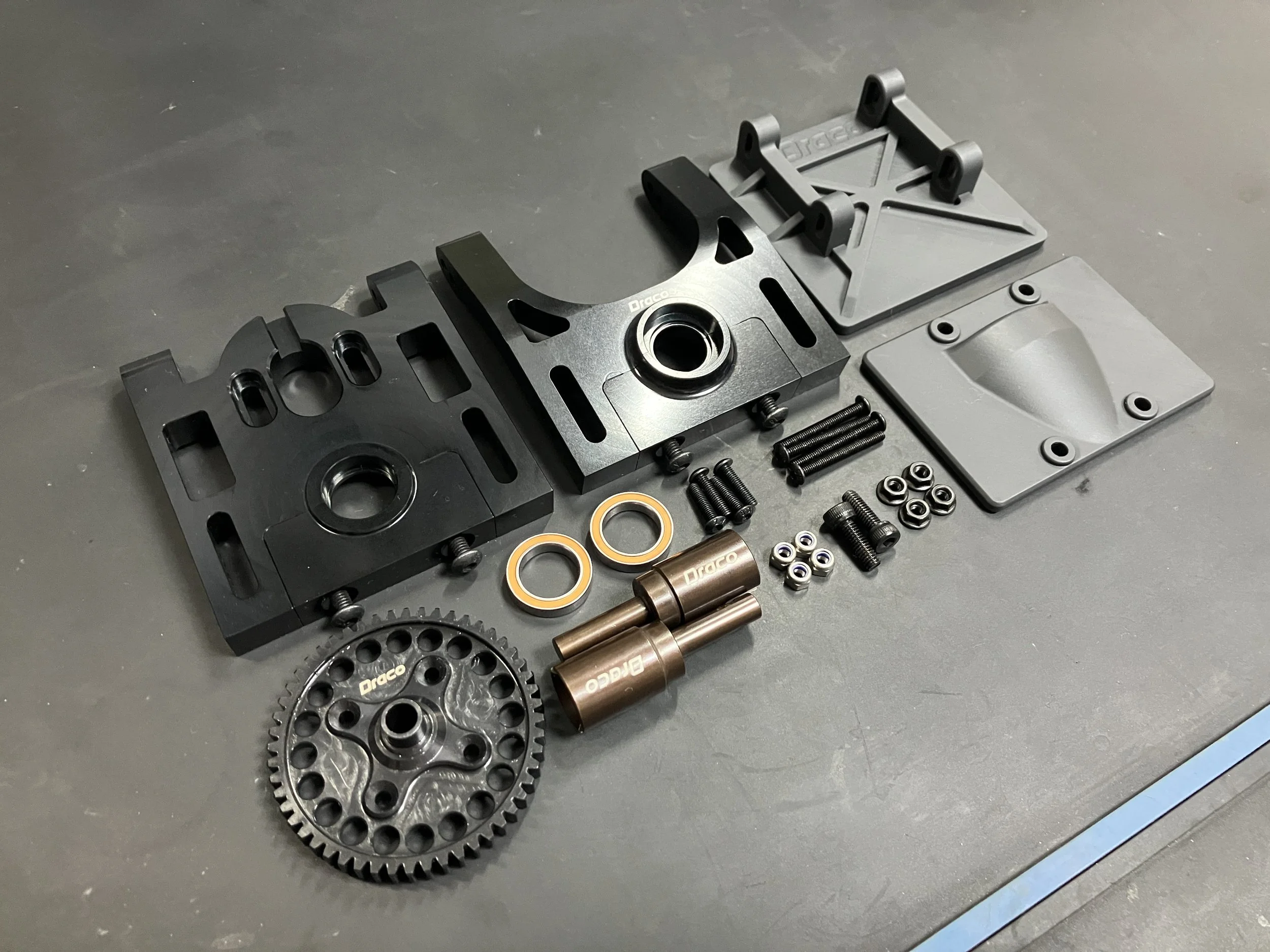

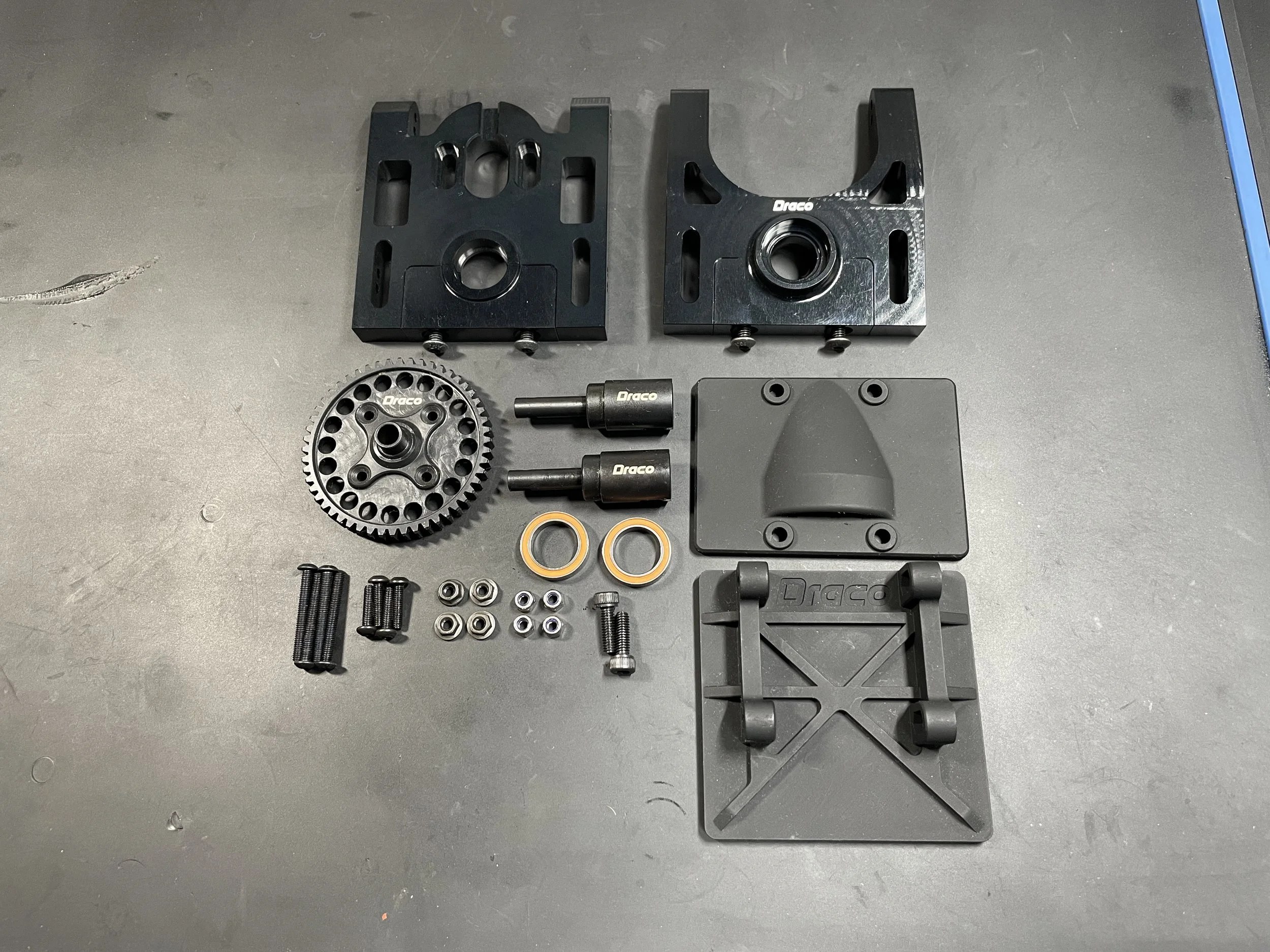

    DRA-200 Draco Centre Diff Set

    The Draco Centre Diff Set is designed for the Savage Series and Savage based platforms. It is a custom set that replaces the stock centre transmission. You are able to use a Centre Diff which simplifies the drive-line and adds additional tuning and gearing options. The stock HPI diff case (HPI86827) is compatible with the included Draco 52T Spur Gear. The included ESC Mount is located at the top of the set, but the Centre Diff Set can also be installed without the ESC Mount. Other features include bearing-supported outdrives front and rear for additional support of the drive-line increasing reliability and durability.

  • Draco Savage XL Flux TVPs

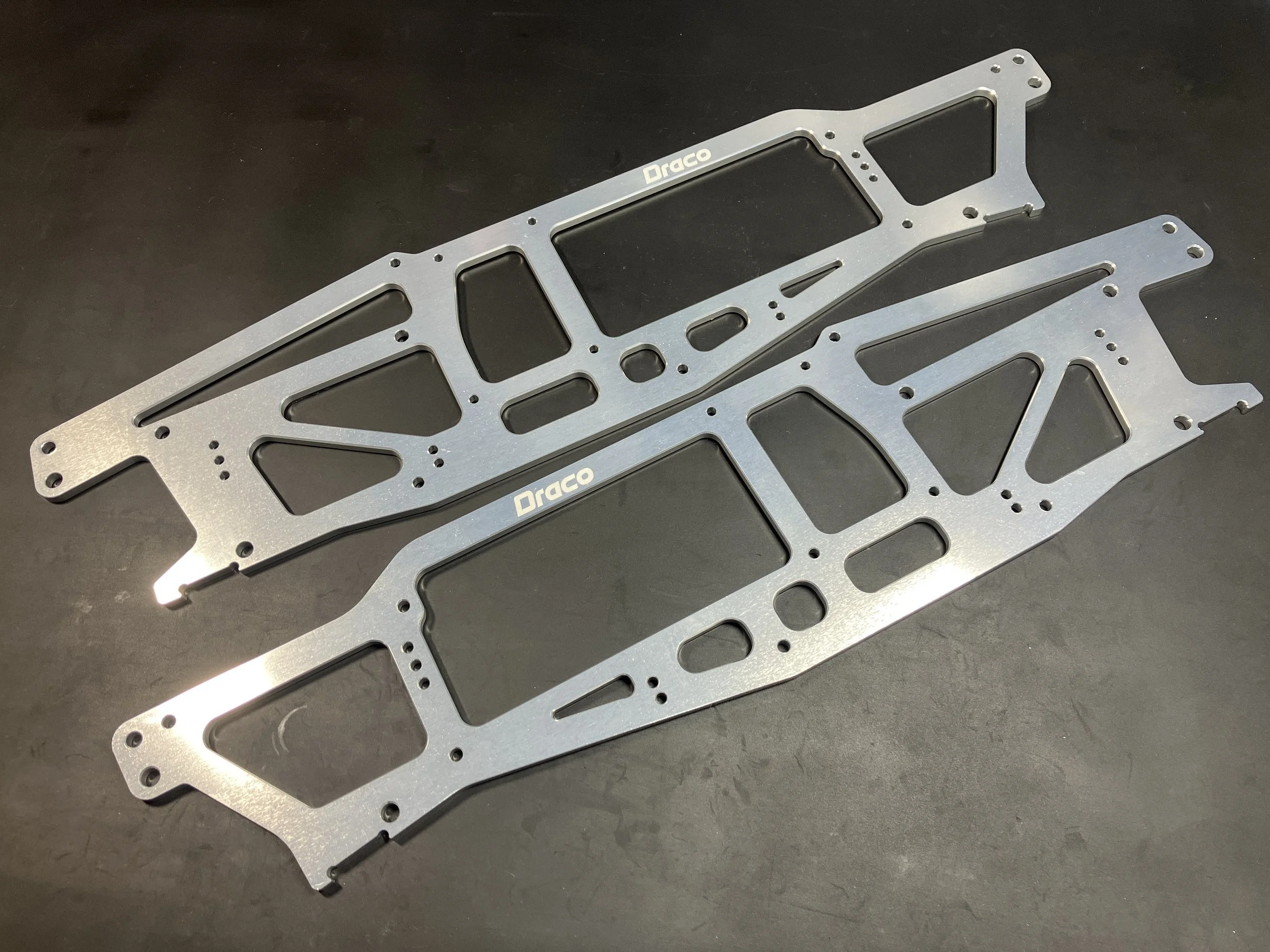

    DRA-210 Draco Savage XL Flux TVPs

    Made of 7075-T6 Aluminum and hard anodized. With a 4mm thickness the TVPs are the perfect balance of weight savings and strength. Can be purchased as a pair for your Savage Flux or Flux XL upgrade, or as part of the Draco Savage Electric Conversion Kit.

  • Draco ESC Rear Mount

    DRA-209 Draco Rear ESC Mount

    Made of 3d printed resin the Draco ESC Rear Mount is available as an option for the Draco Electric Conversion Kit. Mounting the ESC in the rear allows better access to the centre diff and keeps the ESC protected. Fits the Draco Savage XL Flux TVPs.

  • Draco Servo Plate and Radio Box

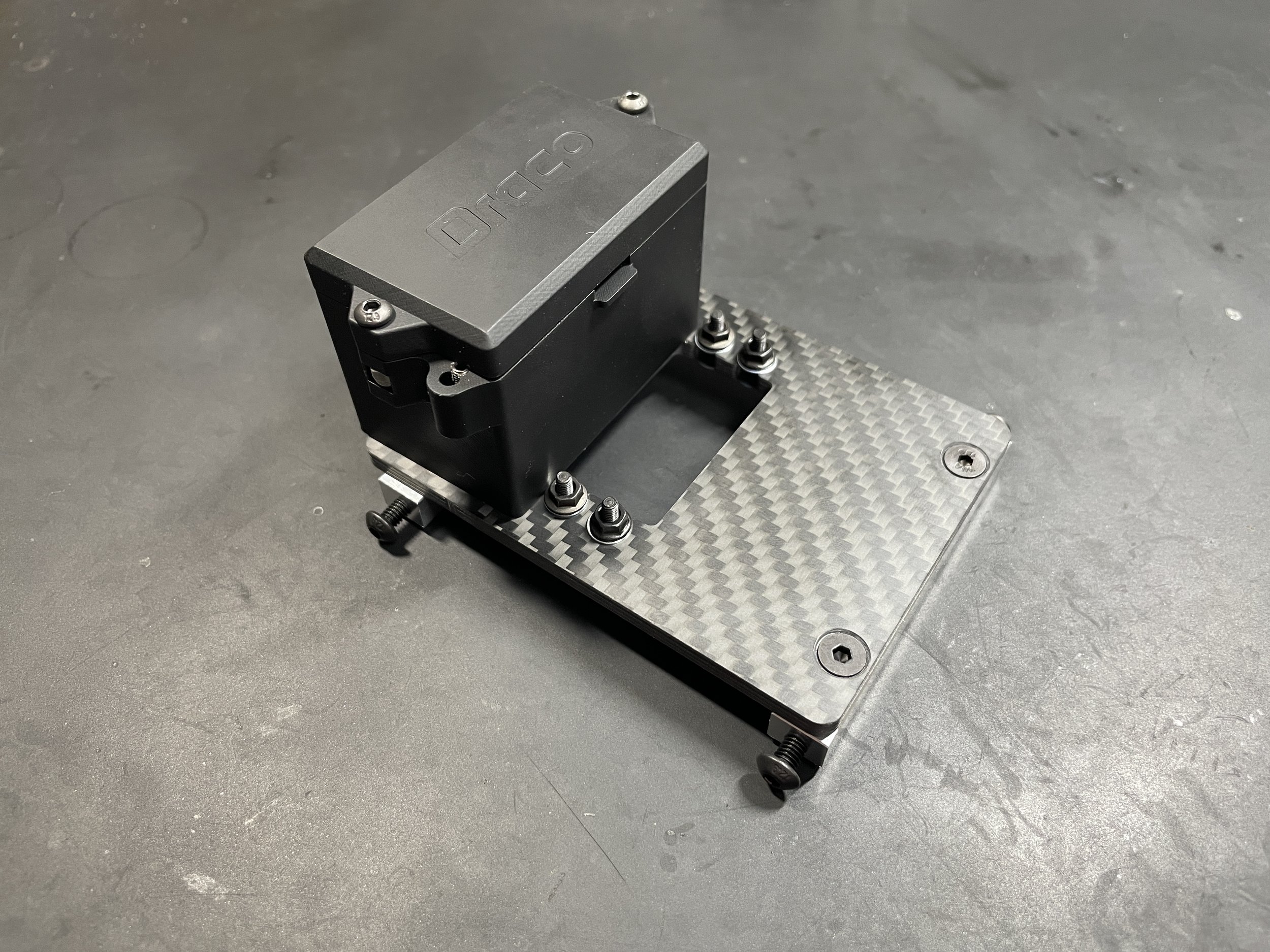

    DRA-215 Draco Servo Plate/Radio Box

    Made of Toray 3K 4mm thick carbon fibre, the Draco Servo plate adds rigidity to your steering and chassis. With weight savings, you can enjoy an additional level of tunability for your Savage or Super 5SC Flux.

    The 3D Printed radio box is included with the Draco Carbon Fibre Servo Plate and houses the electronics and wiring. All hardware is included consisting of M3x12mm Button head screws and M3 Nuts for the Radio Box Lid. M4x20mm Button Head screws to mount the radio box to the plate and M4x12mm Button Head Screws to mount the rear brace to the plate.

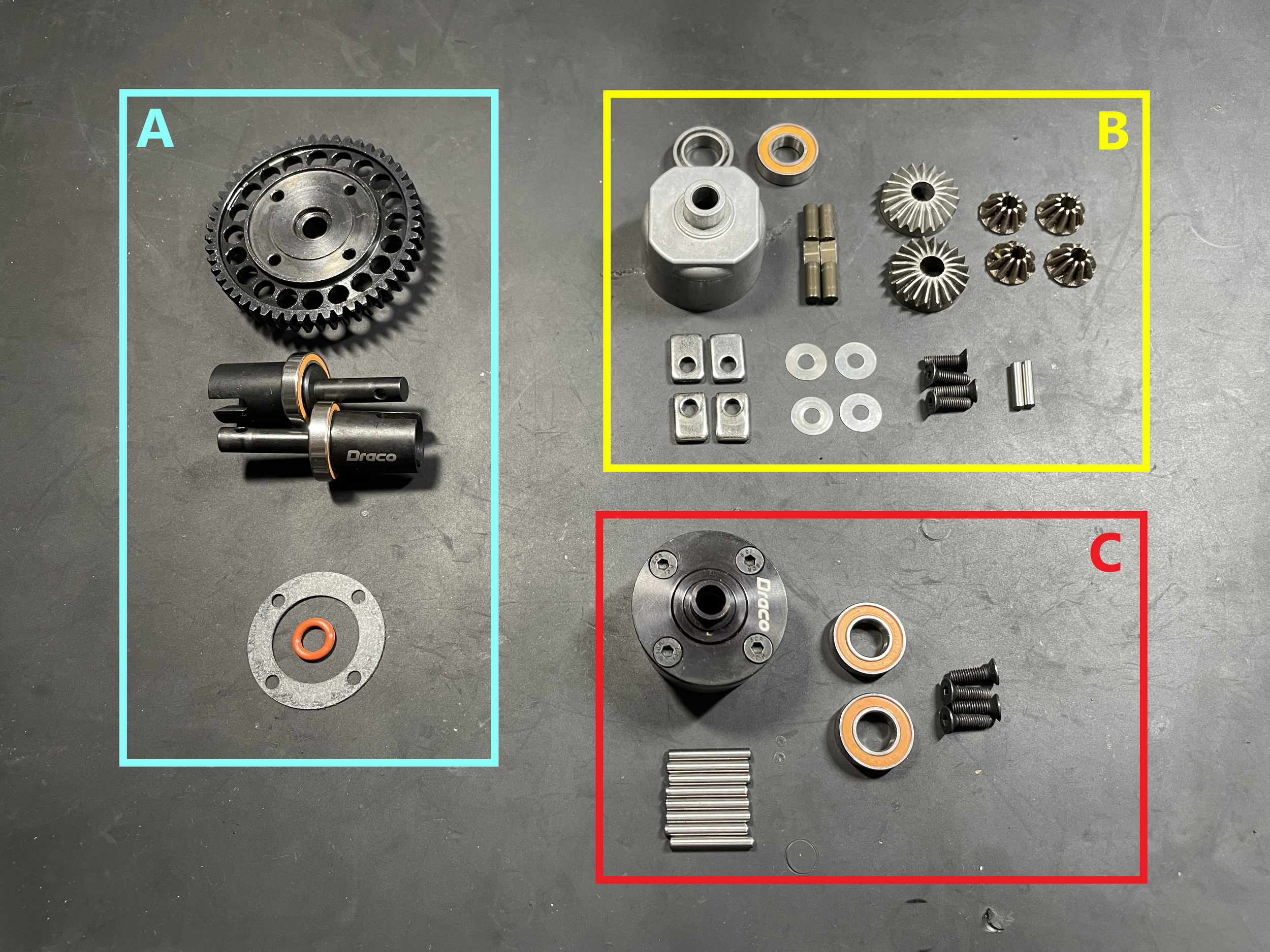

  • Pre-Assembled Draco Centre Differential

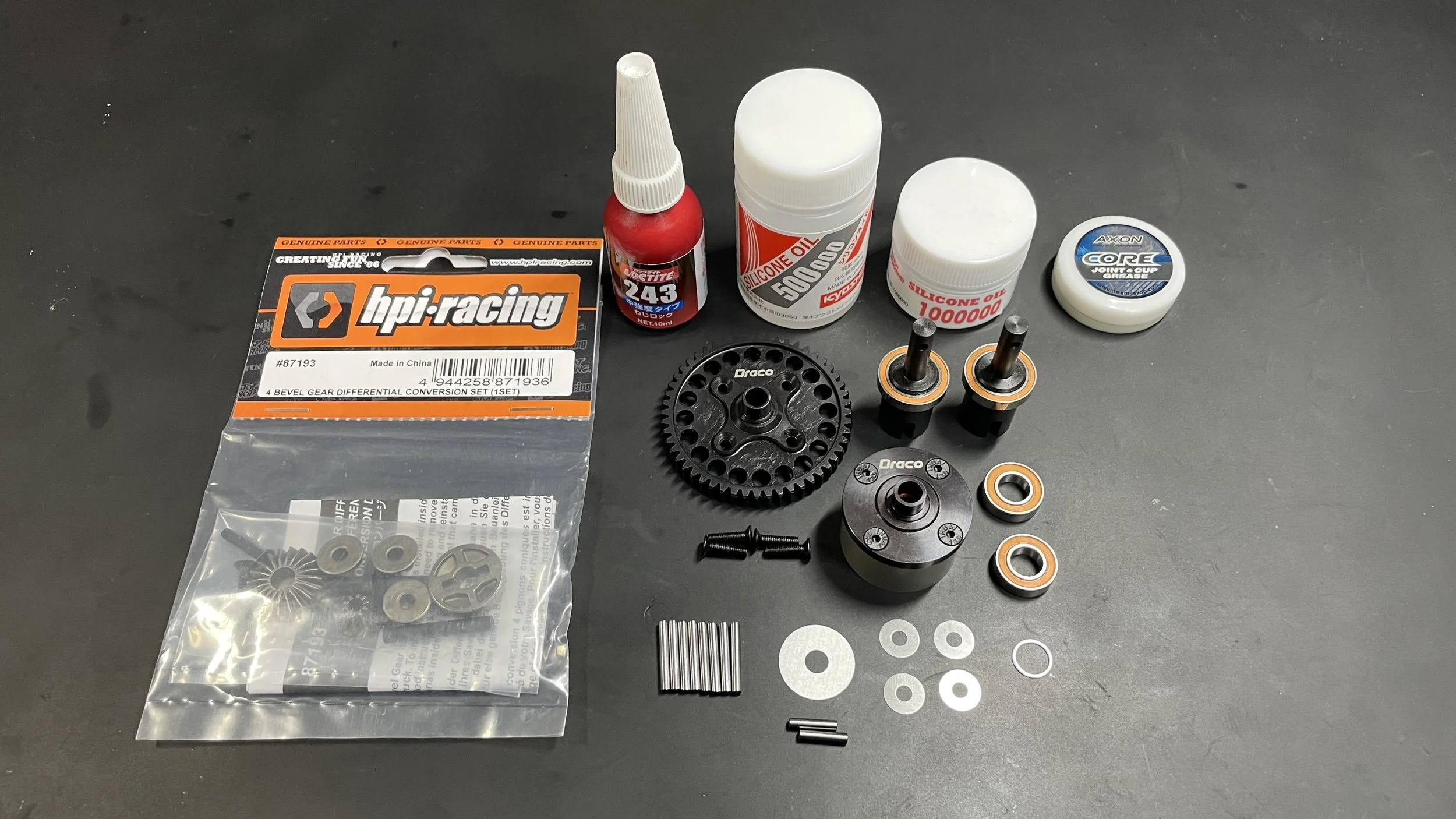

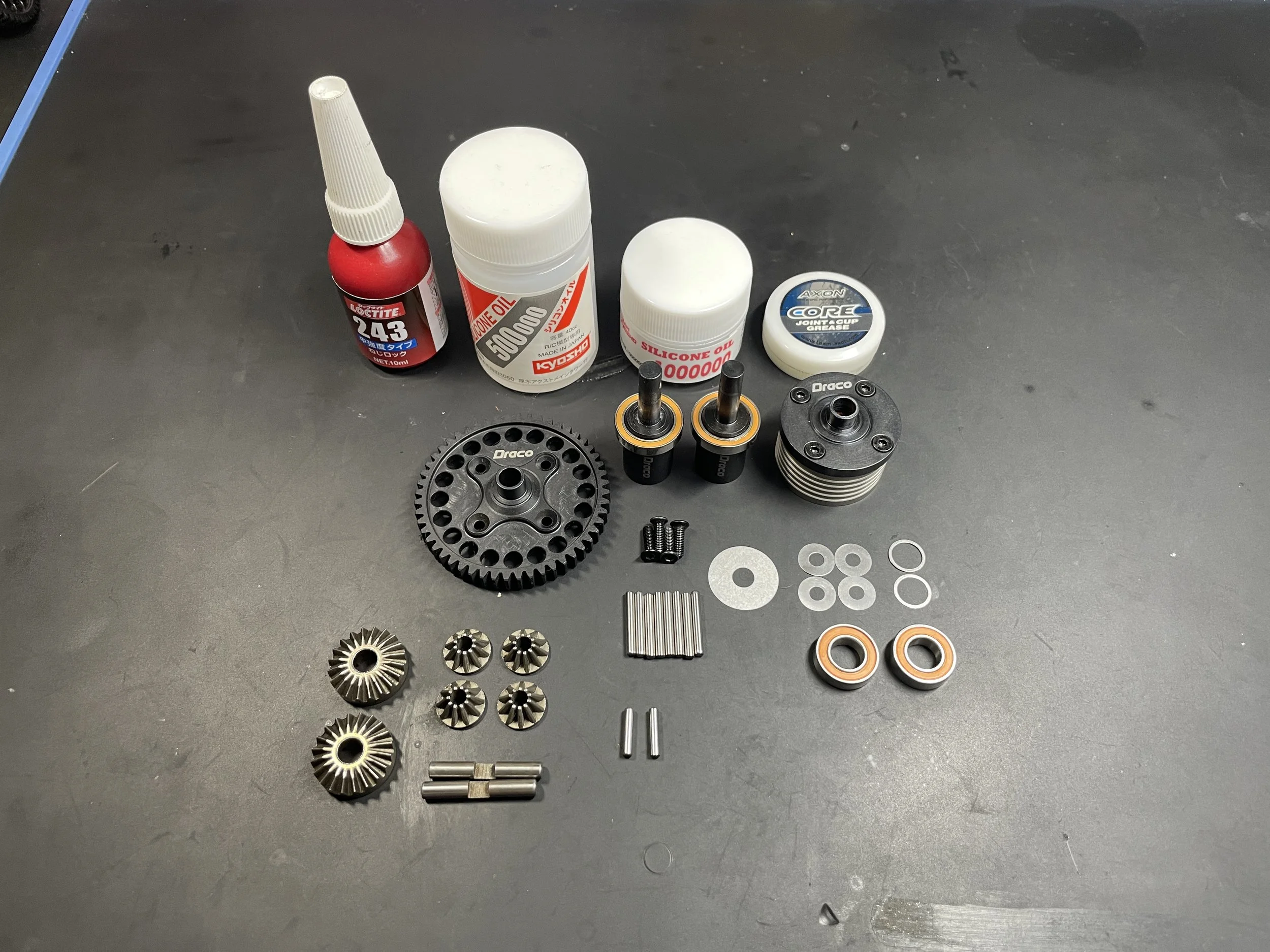

    The Pre-Assembled Draco Centre Differential is now included with the Draco Savage XL Electric Conversion Kit and an option with the Draco Centre Diff Set. The Differential includes all parts seen in the picture and it is assembled with your choice of Silicone Oil. Please choose from the drop-down menu in The Draco Store.

ESC Mounting Options

Centre Mounted ESC

Centre Mounted ESC

The Draco ESC Mount (DRA-207) is included in the Draco Centre Diff Set and mounts above the centre diff and pinion.

Centre ESC Mount Advantages

  • Easier routing of ESC wires with a shorter distance between the radio box and ESC to avoid using any wire extensions

  • Added protection for the ESC especially if you run the stock handle with is highly recommended

  • Motor wires are easily connected to the ESC

  • Mounts easily with included hardware

  • No additional holes needed in TVPs as it mounts to the Draco Centre Diff Set itself (Perfect for customers who want to get bashing as soon as possible and already have a Savage Flux Platform)

  • Can be mounted in two different positions

  • Not as exposed to dirt and debris

Centre ESC Mount Disadvantages

  • Limits access to pinion and motor for gear mesh adjustments

  • More difficult to monitor the gears and conduct maintenance

  • Mounted high which raises CG

Rear Mounted ESC

Rear Mounted ESC

The Draco Rear ESC Mount (DRA-209) is an optional part for the Draco Savage XL Flux TVPs and Draco Savage XL Flux Electric Conversion Kit.

Rear Mounted ESC Advantages

  • Allows better access to the gears for quick adjustments and maintenance

  • Better cooling

  • Mounted lower for better CG

  • Adds more weight at rear for better front to rear balance

Rear Mounted ESC Disadvantages

  • Additional wire extensions required

  • More exposed to dirt and debris
