Draco Savage XL Flux TVPs 2024

In Stock

Available Now!

Product Overview

The Draco Savage XL Flux TVPs are a new option available as an upgrade or included in the Draco Savage Electric Conversion Kit. The TVPs are made of Aluminum 7075-T6 and hard anodized for wear resistance and durability. They are 4mm thick for a balance of weight savings and strength. The Draco Savage XL Flux TVPs are NOT COMPATIBLE WITH the stock HPI85052 Centre Gearbox, instead the TVPs are optimized for the Draco Centre Diff Set 2024 and the Alza Racing Centre Differential Kit. To further customise your rig, customers also have the option of a Draco Rear ESC Mount and the Draco Servo Plate with Radio box. Check below for more details of the options available, the parts included and the parts needed to either complete your electric conversion or upgrade your Savage XL Flux.

Draco Savage Electric Conversion Kit

The Draco Savage Electric Conversion kit is a new product available for customers who would like to convert an existing Nitro Savage Platform to an electric platform. Although the Kit includes MOST of what you need to complete the conversion there are still some parts the customer will need to purchase separately. The Draco Centre Diff includes an ESC mount which is mounted above the Centre Diff or for customers wanting to mount their ESC at the rear, the Draco Rear ESC Mount is also available.

Parts Included:

DRA-210 Draco Savage XL Flux TVPs (1 Pair)
DRA-200 Draco Centre Diff Set 2024 (See what is included here)
….and depending on Bundle additional parts may differ. Please see below.

Optional Parts Available:

DRA-209 Draco Rear ESC Mount
DRA-215 Draco Servo Plate and Radio Box

Parts Needed:

Radio Box (HPI85236 or DRA-215 Draco Servo Plate and Radio Box)
DRA-209 Draco ESC Rear Mount (If rear mounting is preferred)
Battery Boxes
ESC
Motor
11T-22T Mod 1 Pinion
Centre Diff Case (HPI86827 Alloy Diff Case Set or Draco Diff Case DRA-100)

Draco Savage XL

Electric Conversion Kit Options

Draco Savage XL Flux Electric Conversion Kit (Bundle 1)

Parts included in Bundle 1
Draco Savage XL Flux TVPs (2)
Draco Centre Diff Set 2024 (1)
Draco Savage XL Flux Electric Conversion Kit (Bundle 2)

Parts included in Bundle 2
Draco Savage XL Flux TVPs (2)
Draco Centre Diff Set 2024 (1)
Draco Diff Case (1)
8x16x5mm Bearings (2)
Draco Savage XL Flux Electric Conversion Kit (Bundle 3)

Parts included in Bundle 3
Draco Savage XL Flux TVPs (2)
Draco Centre Diff Set 2024 (1)
Draco Diff Case (1)
8x16x5mm Bearings (2)
HPI 87193 4 Bevel Gear Conversion Set (1)
Draco Shim Kit (8x10mm Shims in thicknesses 0.1mm (2) / 0.2mm (1) / 0.3mm (2) )
Battery Boxes (2)
Draco Savage XL Flux Electric Conversion Kit (Bundle 4)

Parts included in Bundle 4
Draco Savage XL Flux TVPs (2)
Draco Centre Diff Set 2024 (1)
Draco Diff Case (1)
8x16x5mm Bearings (2)
HPI 87193 4 Bevel Gear Conversion Set (1)
Draco Shim Kit (8x10mm Shims in thicknesses 0.1mm (2) / 0.2mm (1) / 0.3mm (2) )
Battery Boxes (2)
HPI 86054 142mm Rear Dogbone (for XL length) (1)

Pre-Order Now!

A closer look

Draco Savage Electric Conversion Kit

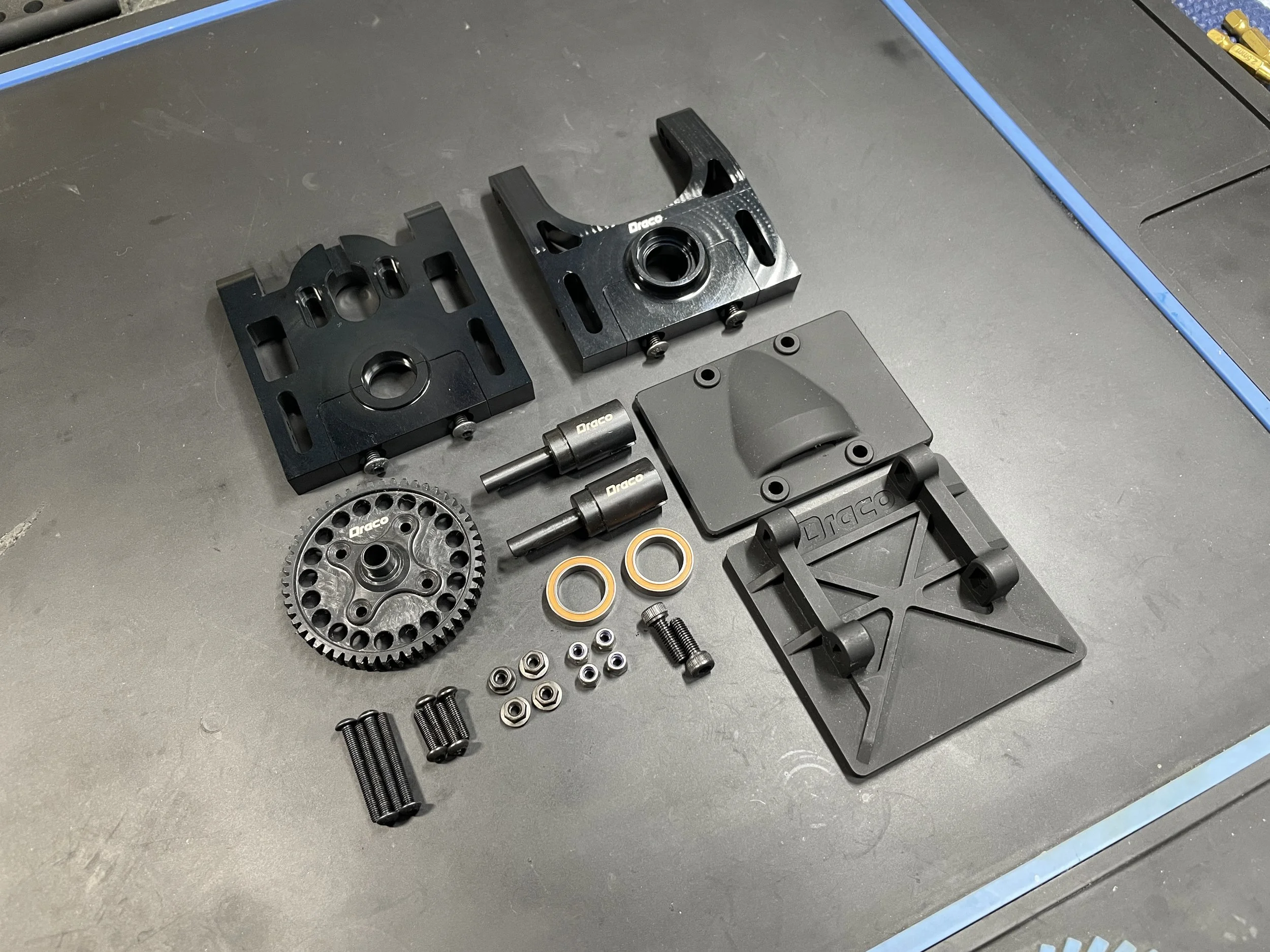

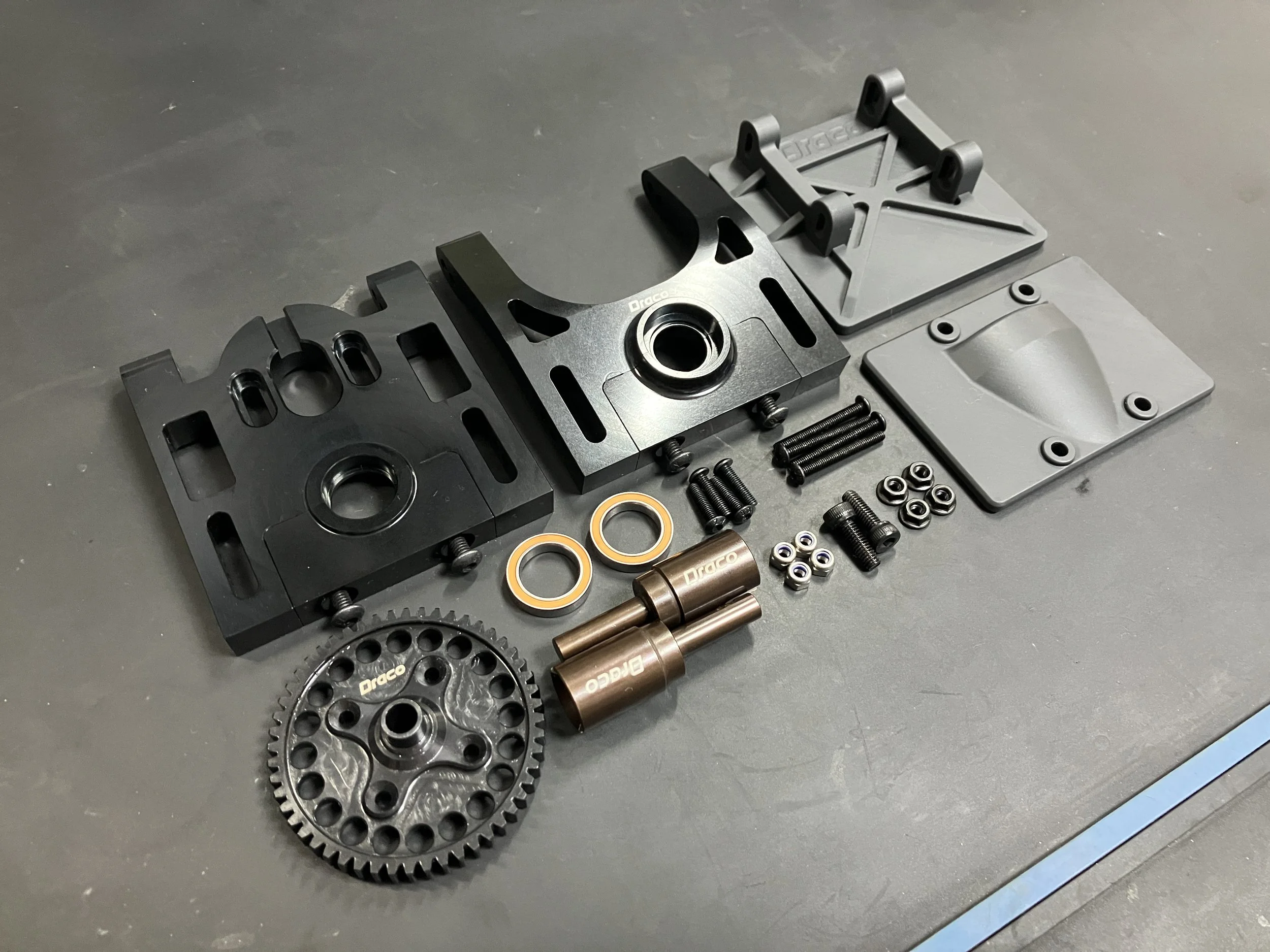

Draco Centre Diff Set

DRA-200 Draco Centre Diff Set
The Draco Centre Diff Set is designed for the Savage Series and Savage based platforms. It is a custom set that replaces the stock centre transmission. You are able to use a Centre Diff which simplifies the drive-line and adds additional tuning and gearing options. The stock HPI diff case (HPI86827) is compatible with the included Draco 52T Spur Gear. The included ESC Mount is located at the top of the set, but the Centre Diff Set can also be installed without the ESC Mount. Other features include bearing-supported outdrives front and rear for additional support of the drive-line increasing reliability and durability.

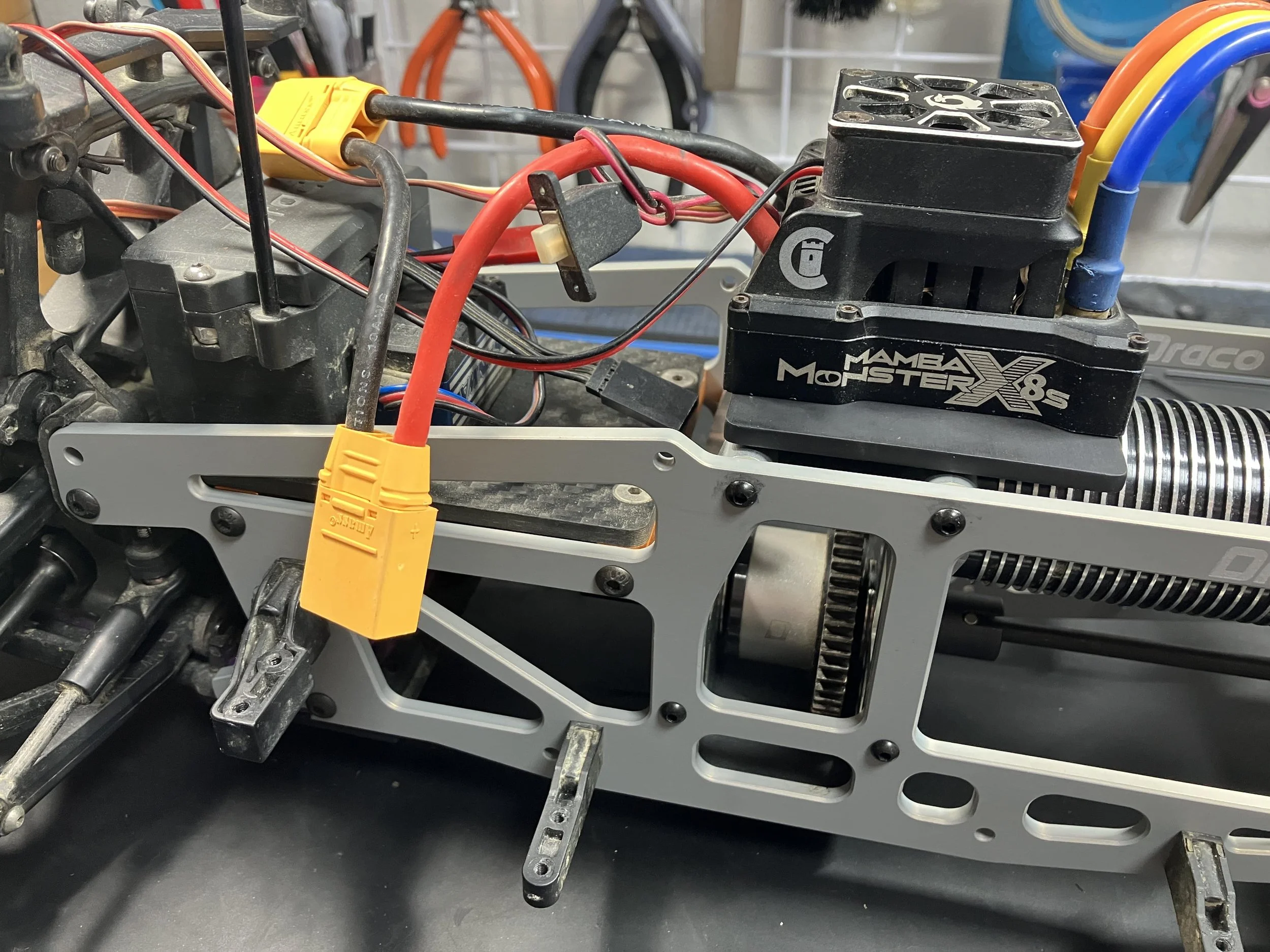

Draco Savage XL Flux TVPs

DRA-210 Draco Savage XL Flux TVPs
Made of 7075-T6 Aluminum and hard anodized. With a 4mm thickness the TVPs are the perfect balance of weight savings and strength. Can be purchased as a pair for your Savage Flux or Flux XL upgrade, or as part of the Draco Savage Electric Conversion Kit.

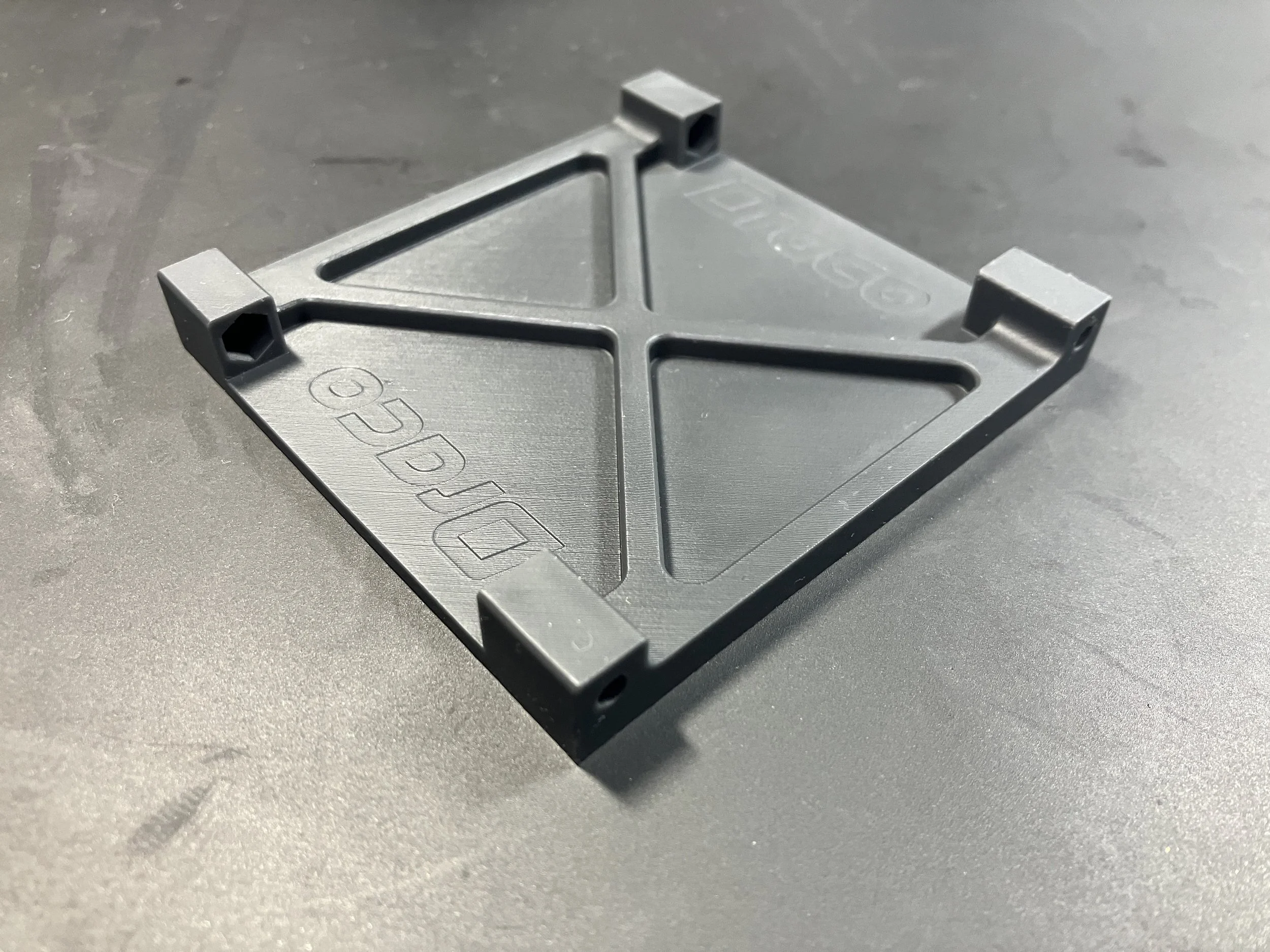

Draco ESC Rear Mount

DRA-209 Draco Rear ESC Mount
Made of 3d printed resin the Draco ESC Rear Mount is available as an option for the Draco Electric Conversion Kit. Mounting the ESC in the rear allows better access to the centre diff and keeps the ESC protected.

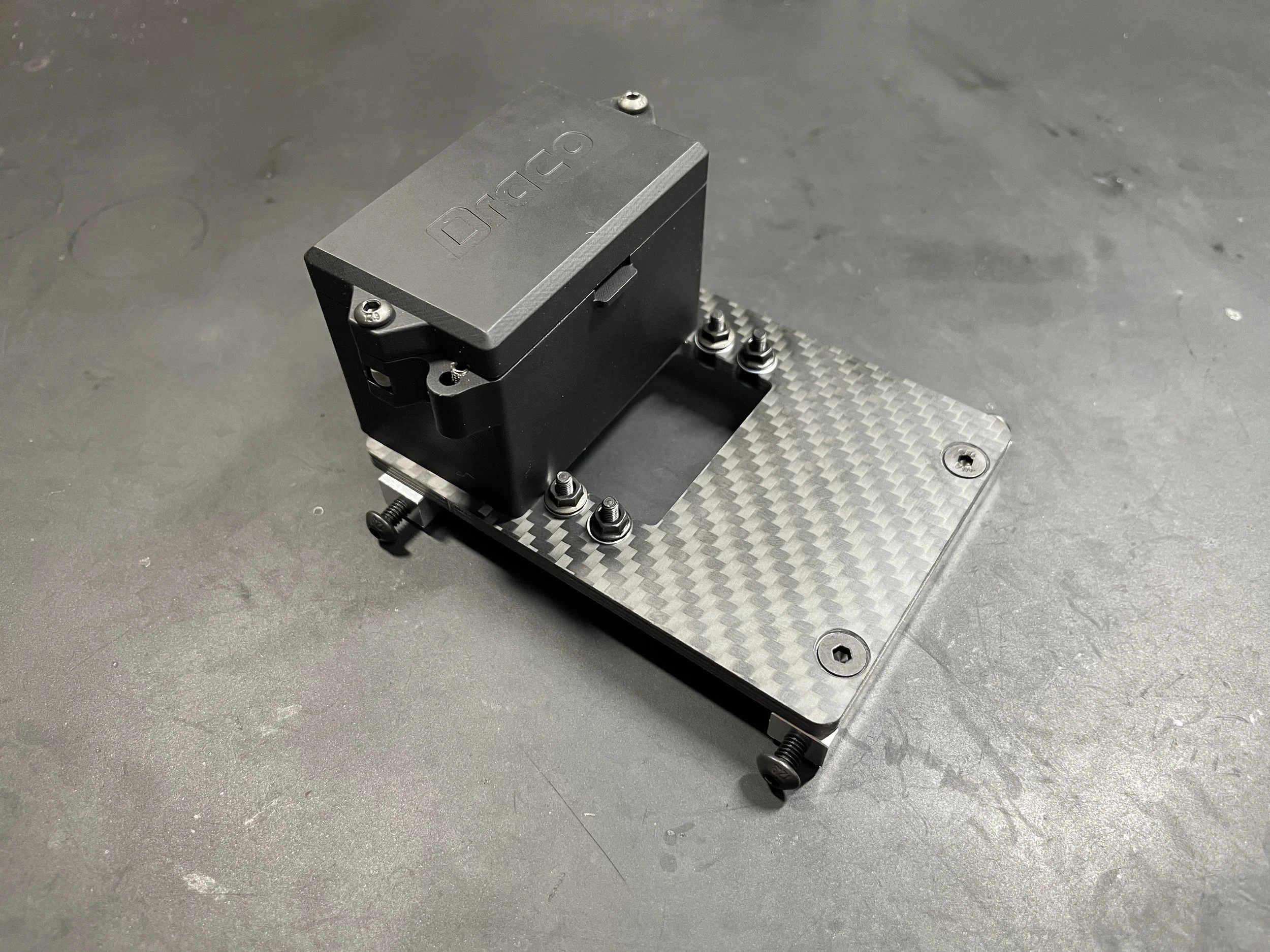

Draco Servo Plate and Radio Box

DRA-215 Draco Servo Plate/Radio Box
Made of Toray 3K 4mm thick carbon fibre, the Draco Servo plate adds rigidity to your steering and chassis. With weight savings also, you can enjoy an additional level of tunability for your Savage.
The 3D Printed radio box is included with the Draco Carbon Fibre Servo Plate and houses the electronics and wiring. All hardware is included consisting of M3x12mm Button head screws and M3 Nuts for the Radio Box Lid. M4x20mm Button Head screws to mount the radio box to the plate and M4x12mm Button Head Screws to mount the rear brace to the plate.

ESC Mounting Options

Centre Mounted ESC

The Draco ESC Mount (DRA-207) is included in the Draco Centre Diff Set and mounts above the centre diff and pinion.

Centre ESC Mount Advantages

Easier routing of ESC wires with a shorter distance between the radio box and ESC to avoid using any wire extensions
Added protection for the ESC especially if you run the stock handle with is highly recommended
Motor wires are easily connected to the ESC
Mounts easily with included hardware
No additional holes needed in TVPs as it mounts to the Draco Centre Diff Set itself (Perfect for customers who want to get bashing as soon as possible and already have a Savage Flux Platform)
Can be mounted in two different positions
Not as exposed to dirt and debris

Centre ESC Mount Disadvantages
